Kevins Vetter Fairing Mount
husky385_imp Offline
Running Like a Top
Posts: 165
Threads: 18
Likes Received: 0 in 0 posts
Likes Given: 0
Joined: Oct 2015
#1
08-06-2016, 06:18 AM
Mine was Fabricated from 2 mounts. The upper mount is from a Suzuki or Yamaha I'm not sure which. The lowers or down tube portion is from a 78 CB750.

These are the 3 main pieces of the mount.
[url=http://s694.photobucket.com/user/husky385/media/20160224_100641_resized.jpg.html][Image: cfb3af77b68e16e59d2ebe2a7196fa73.jpg]

We used the oil cooler mounting point to fix the upper mount to the bike.
[url=http://s694.photobucket.com/user/husky385/media/IMG_0153.jpg.html][Image: 3b6c7b88e7338f9ae24ee71d4a9d53de.jpg]

The parts loosely on the bike.
[url=http://s694.photobucket.com/user/husky385/media/IMG_0160.jpg.html][Image: 1d56f55bc155e305c5747ddce4eb7c40.jpg]
[url=http://s694.photobucket.com/user/husky385/media/IMG_0162.jpg.html][Image: eab994ce195efda48d33bece58c5f781.jpg]

Cutouts to allow forks to go lock to lock.

[url=http://s694.photobucket.com/user/husky385/media/IMG_0157.jpg.html][Image: 2e671a0c18e71f88d9247402125d70a8.jpg]
[url=http://s694.photobucket.com/user/husky385/media/IMG_0156.jpg.html][Image: f967c786e5d13098fa1580d0976cc453.jpg]

Clearance for the bottom of the oil cooler.

[url=http://s694.photobucket.com/user/husky385/media/IMG_0155.jpg.html][Image: 40de816dccf1575fd19be5de425bd74c.jpg]
[url=http://s694.photobucket.com/user/husky385/media/IMG_0154.jpg.html][Image: 56719f7b69c3030e935134bbcb6ba7de.jpg]

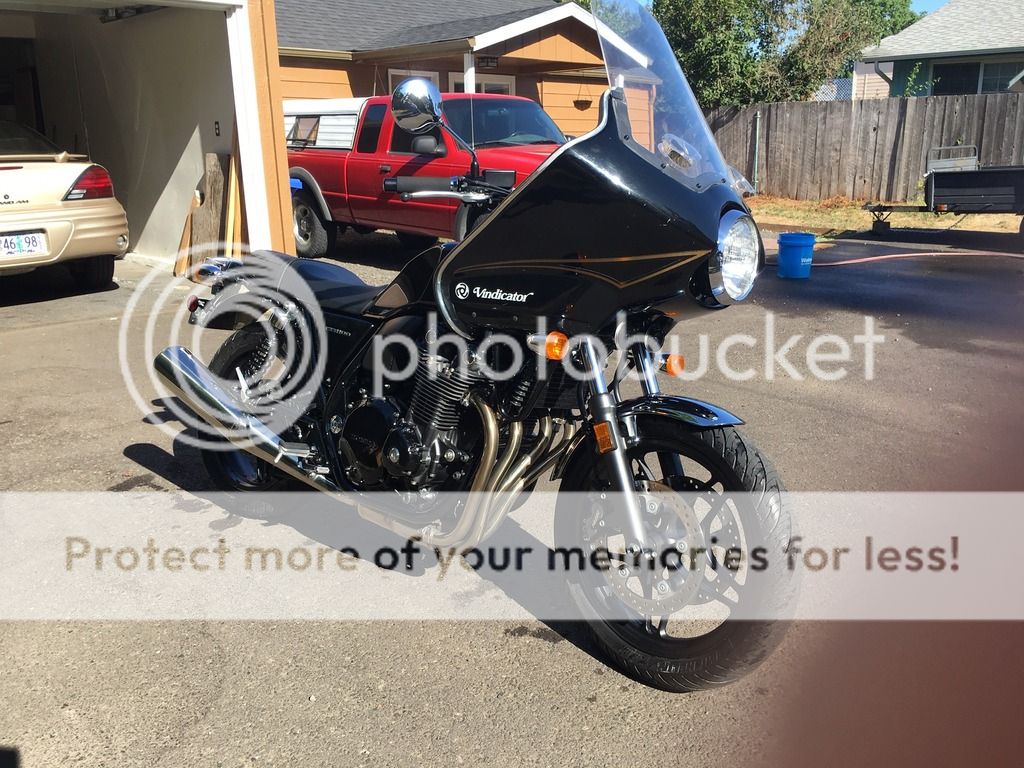

Finished and mounted.
[url=http://s694.photobucket.com/user/husky385/media/IMG_0149.jpg.html][Image: 368a095532be5d3090e32c3db826dd9b.jpg]
[url=http://s694.photobucket.com/user/husky385/media/IMG_0145.jpg.html][Image: 5edf7c3ee2ccd489f88536a77baade35.jpg]

I hope this helps someone who may want to install a Vetter fairing on their CB1100.

I hope carguy1959 shows his mounting system.
Kevin
Find
Reply
husky385_imp Offline
Running Like a Top
Posts: 165
Threads: 18
Likes Received: 0 in 0 posts
Likes Given: 0
Joined: Oct 2015
#2
08-06-2016, 10:25 AM
Oops Thanks to Cormanus, The Ferret or Guth which ever one of you moved this thread.Thumbs Up
Kevin
Find
Reply
Carguy1959_imp Offline
Been There
Posts: 281
Threads: 8
Likes Received: 0 in 0 posts
Likes Given: 0
Joined: Aug 2015
#3
08-07-2016, 12:27 AM
I like he way the mount allows you to keep the oil cooler in the factory spot. I modified a one piece mount and had to move the cooler to the out side of the bracket
Find
Reply
gcarper_imp Offline
Running Like a Top
Posts: 123
Threads: 26
Likes Received: 0 in 0 posts
Likes Given: 0
Joined: Apr 2013
#4
08-16-2016, 06:32 AM
(08-06-2016, 06:18 AM)husky385_imp Wrote: Mine was Fabricated from 2 mounts. The upper mount is from a Suzuki or Yamaha I'm not sure which. The lowers or down tube portion is from a 78 CB750.

These are the 3 main pieces of the mount.
[url=http://s694.photobucket.com/user/husky385/media/20160224_100641_resized.jpg.html][Image: cfb3af77b68e16e59d2ebe2a7196fa73.jpg]

We used the oil cooler mounting point to fix the upper mount to the bike.
[url=http://s694.photobucket.com/user/husky385/media/IMG_0153.jpg.html][Image: 3b6c7b88e7338f9ae24ee71d4a9d53de.jpg]

The parts loosely on the bike.
[url=http://s694.photobucket.com/user/husky385/media/IMG_0160.jpg.html][Image: 1d56f55bc155e305c5747ddce4eb7c40.jpg]
[url=http://s694.photobucket.com/user/husky385/media/IMG_0162.jpg.html][Image: eab994ce195efda48d33bece58c5f781.jpg]

Cutouts to allow forks to go lock to lock.

[url=http://s694.photobucket.com/user/husky385/media/IMG_0157.jpg.html][Image: 2e671a0c18e71f88d9247402125d70a8.jpg]
[url=http://s694.photobucket.com/user/husky385/media/IMG_0156.jpg.html][Image: f967c786e5d13098fa1580d0976cc453.jpg]

Clearance for the bottom of the oil cooler.

[url=http://s694.photobucket.com/user/husky385/media/IMG_0155.jpg.html][Image: 40de816dccf1575fd19be5de425bd74c.jpg]
[url=http://s694.photobucket.com/user/husky385/media/IMG_0154.jpg.html][Image: 56719f7b69c3030e935134bbcb6ba7de.jpg]

Finished and mounted.
[url=http://s694.photobucket.com/user/husky385/media/IMG_0149.jpg.html][Image: 368a095532be5d3090e32c3db826dd9b.jpg]
[url=http://s694.photobucket.com/user/husky385/media/IMG_0145.jpg.html][Image: 5edf7c3ee2ccd489f88536a77baade35.jpg]

I hope this helps someone who may want to install a Vetter fairing on their CB1100.

I hope carguy1959 shows his mounting system.
Kevin

I like, I have an old Wixom fairing i'm going to try and mount on mine this fall.
Find
Reply
caddy425_imp Offline
First Service Completed
Posts: 38
Threads: 7
Likes Received: 0 in 0 posts
Likes Given: 0
Joined: Dec 2016
#5
06-07-2017, 11:17 AM
i have a windjammer SS with lowers that i am about to install - the mount it came with was a cb550 mount but no way to make it fit - after looking around i have a GS1100 mount coming that i think measure out well and should do the job - after living with it for a while - does the weight on the front end effect the bike very much?
Find
Reply
husky385_imp Offline
Running Like a Top
Posts: 165
Threads: 18
Likes Received: 0 in 0 posts
Likes Given: 0
Joined: Oct 2015
#6
06-07-2017, 02:18 PM
(06-07-2017, 11:17 AM)caddy425_imp Wrote: i have a windjammer SS with lowers that i am about to install - the mount it came with was a cb550 mount but no way to make it fit - after looking around i have a GS1100 mount coming that i think measure out well and should do the job - after living with it for a while - does the weight on the front end effect the bike very much?


It effects the quickness of the steering a very slight amount. The bonus for me is that it reduces the jarring in the handlebars from bumps. Another bonus is that I have gained a little in mileage.
I to have some lowers for winter use.
I'll put some pics up with the windjammer lll fairing and lowers.
I like the looks without the Vetter graphics.
Kevin

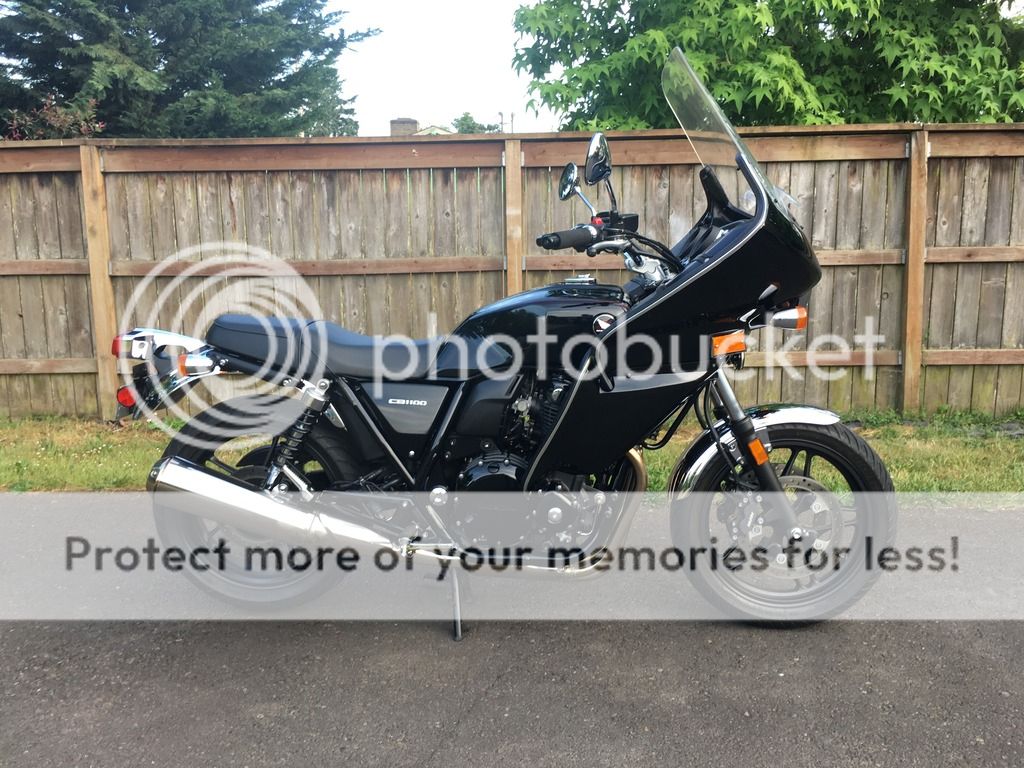

[url=http://s694.photobucket.com/user/husky385/media/Mobile%20Uploads/2017-06/0EFE0319-EF8B-46E8-A3D0-2120F690DA6F.jpg.html][Image: 775e10ed07f9f1011672b5fc7e585ab3.jpg]

[url=http://s694.photobucket.com/user/husky385/media/Mobile%20Uploads/2017-06/3B57446F-87C3-4B62-9538-E44BC70751D7.jpg.html][Image: 68e80bc45b5b4e9b76fd93c9c669a52a.jpg]

[url=http://s694.photobucket.com/user/husky385/media/Mobile%20Uploads/2017-06/31A817A7-0AA8-406B-A7AE-AB0F51BD4984.jpg.html][Image: d75340a42e3bd44dd3e7b9211ea92753.jpg]
Find
Reply
caddy425_imp Offline
First Service Completed
Posts: 38
Threads: 7
Likes Received: 0 in 0 posts
Likes Given: 0
Joined: Dec 2016
#7
06-07-2017, 08:47 PM
(06-07-2017, 02:18 PM)husky385_imp Wrote:
(06-07-2017, 11:17 AM)caddy425_imp Wrote: i have a windjammer SS with lowers that i am about to install - the mount it came with was a cb550 mount but no way to make it fit - after looking around i have a GS1100 mount coming that i think measure out well and should do the job - after living with it for a while - does the weight on the front end effect the bike very much?


It effects the quickness of the steering a very slight amount. The bonus for me is that it reduces the jarring in the handlebars from bumps. Another bonus is that I have gained a little in mileage.
I to have some lowers for winter use.
I'll put some pics up with the windjammer lll fairing and lowers.
I like the looks without the Vetter graphics.
Kevin

[url=http://s694.photobucket.com/user/husky385/media/Mobile%20Uploads/2017-06/0EFE0319-EF8B-46E8-A3D0-2120F690DA6F.jpg.html][Image: 775e10ed07f9f1011672b5fc7e585ab3.jpg]

[url=http://s694.photobucket.com/user/husky385/media/Mobile%20Uploads/2017-06/3B57446F-87C3-4B62-9538-E44BC70751D7.jpg.html][Image: 68e80bc45b5b4e9b76fd93c9c669a52a.jpg]

[url=http://s694.photobucket.com/user/husky385/media/Mobile%20Uploads/2017-06/31A817A7-0AA8-406B-A7AE-AB0F51BD4984.jpg.html][Image: d75340a42e3bd44dd3e7b9211ea92753.jpg]


It effects the quickness of the steering a very slight amount. The bonus for me is that it reduces the jarring in the handlebars from bumps. Another bonus is that I have gained a little in mileage.
I to have some lowers for winter use.
I'll put some pics up with the windjammer lll fairing and lowers.
I like the looks without the Vetter graphics.
Kevin

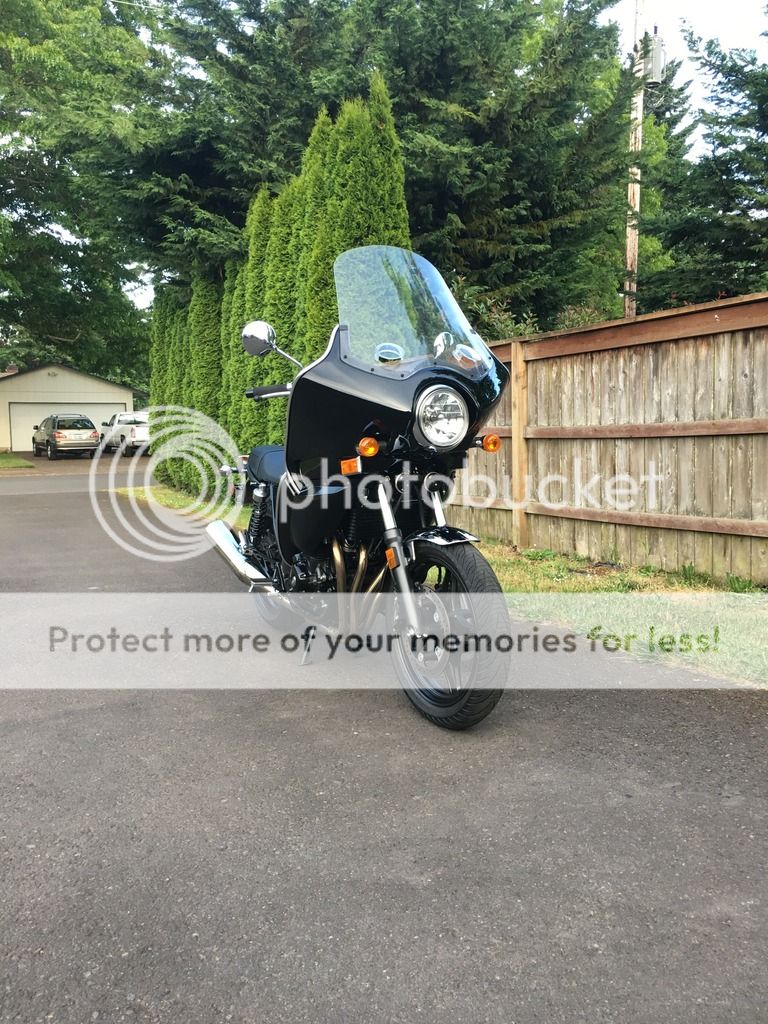

[url=http://s694.photobucket.com/user/husky385/media/Mobile%20Uploads/2017-06/0EFE0319-EF8B-46E8-A3D0-2120F690DA6F.jpg.html][Image: 8c3fc519986f93e61f7ca155b577ba32.jpg]

[url=http://s694.photobucket.com/user/husky385/media/Mobile%20Uploads/2017-06/3B57446F-87C3-4B62-9538-E44BC70751D7.jpg.html][Image: 941680d489f8a41cceff271130944069.jpg]

[url=http://s694.photobucket.com/user/husky385/media/Mobile%20Uploads/2017-06/31A817A7-0AA8-406B-A7AE-AB0F51BD4984.jpg.html][Image: 6e649bcc2e71ca21810c05920769082c.jpg]
Thanks - that is what i was hoping - last two bikes had full factory bodywork and I have noticed that the bar mounted full size screen moves the bars around - enough to notice - And the Vetter gives me good memories and apparently will do what i want - thanks for the help
Find
Reply
husky385_imp Offline
Running Like a Top
Posts: 165
Threads: 18
Likes Received: 0 in 0 posts
Likes Given: 0
Joined: Oct 2015
#8
06-07-2017, 11:46 PM
When you get it mounted show us some pictures please.
Kevin
Find
Reply
PowerDubs_imp Offline
Road Warrior
Posts: 2,635
Threads: 125
Likes Received: 1 in 1 posts
Likes Given: 0
Joined: Jun 2016
#9
06-07-2017, 11:53 PM
Wow, that is awesome! First time I have seen this....
Find
Reply
Peperapido_imp Offline
First Service Completed
Posts: 32
Threads: 0
Likes Received: 0 in 0 posts
Likes Given: 0
Joined: Apr 2017
#10
06-08-2017, 03:06 AM
Very nice fairing.
Find
Reply
