Help with fuel tank dimensions
Author Message
tod.branko_imp Offline
Been There


Posts: 563
Threads: 19
Likes Received: 0 in 0 posts
Likes Given: 0
Joined: Aug 2020
Help with fuel tank dimensions
#1

Guys, I'm currently out of the country and out of reach with my bike, and I found a fuel tank from a 94' CB Seven Fifty, which I would like to swap with my 2014 cb1100 tank. Now, I would like to ask if anyone has nothing better to do or has a stock tank laying around, could take a picture of the bottom and measure the spaces between the front anchors and the rear bolt hole.
Also if you have any idea as to why this swap won't work, I'm listening.

And for rationale, because I know people will ask - I want a bigger tank, with flush tank cap, and I don't want to pay the price of the EX/RS tank. I also want to do a custom color so I'd rather do it on a spare tank that re-do the stock tank.

Any help is very appreciated

'14 CB1100 STD 5 speed


03-21-2021, 12:31 AM
Find Reply
max Offline
Road Warrior


Posts: 1,298
Threads: 39
Likes Received: 15 in 8 posts
Likes Given: 0
Joined: Apr 2025
RE: Help with fuel tank dimensions
#2

Tod here's a link to some pictures of the frame, i " guesured " the dimension from outside the rubber mounts to be around 180 mm but someone else may have a better measurement for that.
http://cb1100forum.com/forum/showthread....=fuel+tank

I hope your new tank will fit around those frame members.
Just a reminder that the fueltank also has a fuel level, fuelpump with connections for overflow and breather hose.


03-21-2021, 01:19 AM
Find Reply
The A-man Offline
Been There

Western North Carolina
Posts: 463
Threads: 9
Likes Received: 59 in 23 posts
Likes Given: 38
Joined: Apr 2025
RE: Help with fuel tank dimensions
#3

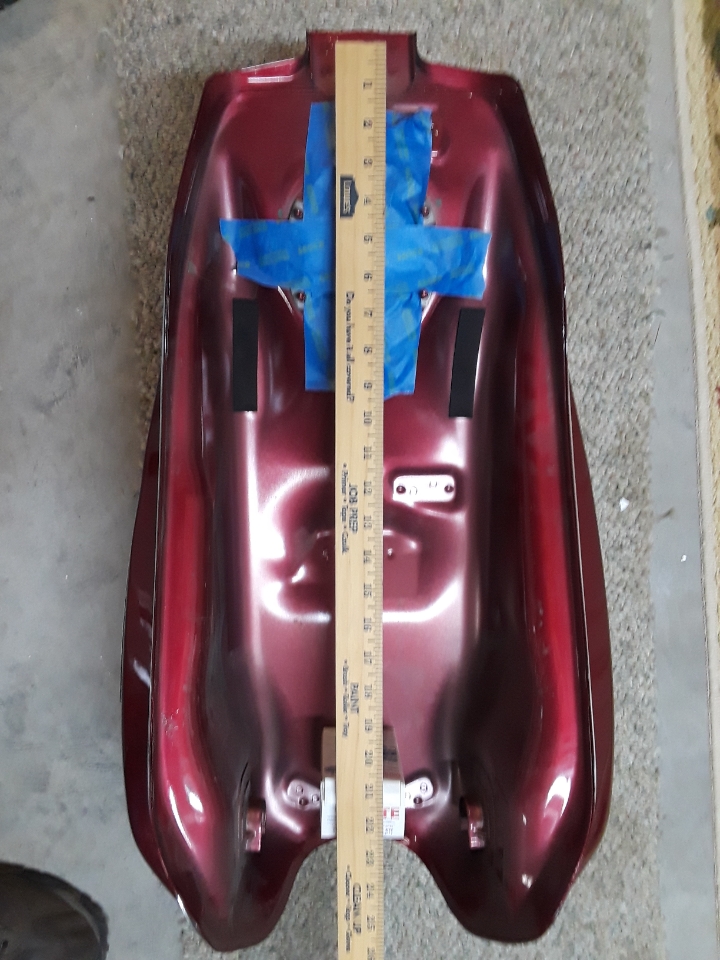

Tod - try this picture. This is my spare 2014 DLX tank. Note, I have the yardstick "0.00" inch lined up with the centerline of the attachment hole, and I have the yardstick propped up so that it's in plan with the two front capture features (where the rubber snubbers mount). Optically, it doesn't look like it's lined up with the mounting hole, but it is. Hopefully, you can do some rough scaling from this.

[Image: 64b56fb3702bb21a4c536c5261bc3401.jpg]


03-21-2021, 01:52 AM
Find Reply
pekingduck Offline
Road Warrior

Southern California
Posts: 1,670
Threads: 41
Likes Received: 137 in 65 posts
Likes Given: 34
Joined: Apr 2014
RE: Help with fuel tank dimensions
#4

Tod, the 750 used a single narrow backbone on the frame, which allowed a large fuel area. The CB1100 tank is shallow to allow the multi-tube frame. Also, remember the fuel pump opening is large, and the 750 had only a small petcock.


03-21-2021, 02:19 AM
Find Reply
tod.branko_imp Offline
Been There


Posts: 563
Threads: 19
Likes Received: 0 in 0 posts
Likes Given: 0
Joined: Aug 2020
Help with fuel tank dimensions
#5

Thank you very much everyone for your input, that's exactly why I reached out. I will co sider all these things before I make a decision. Thank you so much

'14 CB1100 STD 5 speed


03-21-2021, 03:52 AM
Find Reply
Lord Popgun Offline
El Supremo RLET Force

Virginia
Posts: 8,025
Threads: 21
Likes Received: 180 in 103 posts
Likes Given: 121
Joined: Apr 2025
RE: Help with fuel tank dimensions
#6

Its seems to me that the tank would extensive modification to work on our bike.


03-21-2021, 04:03 AM
Find Reply
