CB350 Resto-Mod Cafe'
#61
Thanks guys. I don't really know this engine that well, but I do study the manual and there's some much info on-line Big Grin

Cormanus, hopefully I've done a good enough job so the paint & other details hold up after putting some miles on it.

-------------
Couple of updates

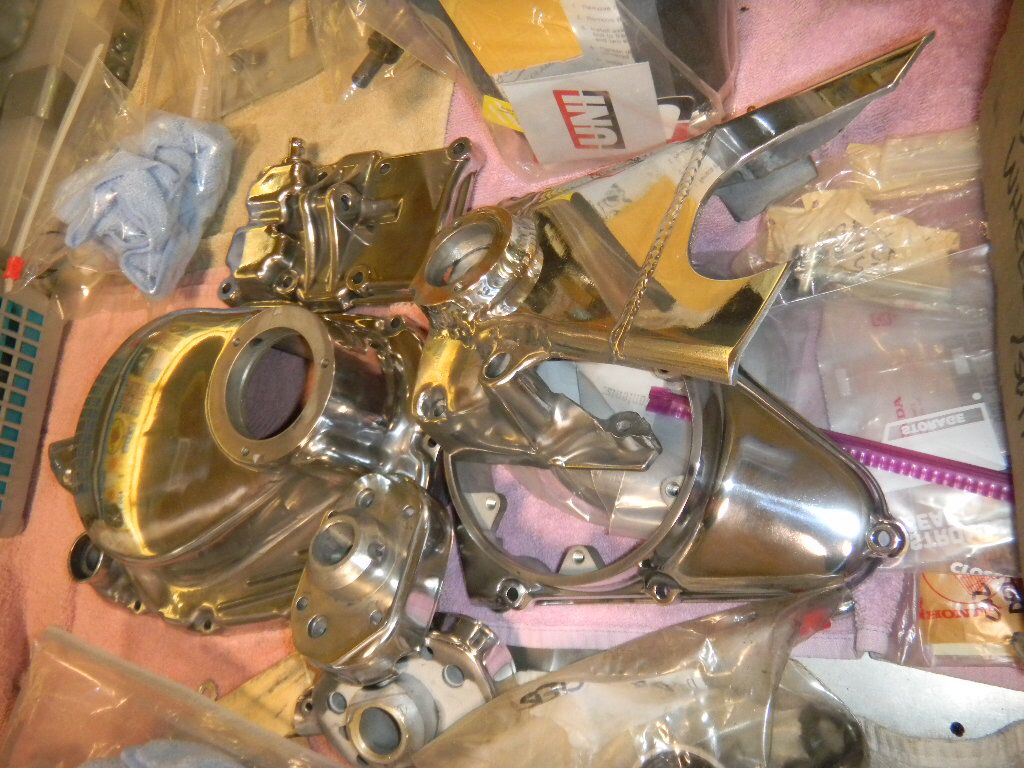

Had done some of the polishing previously, broke out the wheels & rouge. Got my dust mask, goggles and gloves. Man, I really don't like doing this, but it does give my wife a good chuckle... Angry. She claims I look like a raccoon or alien when I'm done.

Okay, onto the pics. The parts look way shinier than they are.
[Image: 7e4c06795a30d222497973bcfa9a6ed8.jpg]

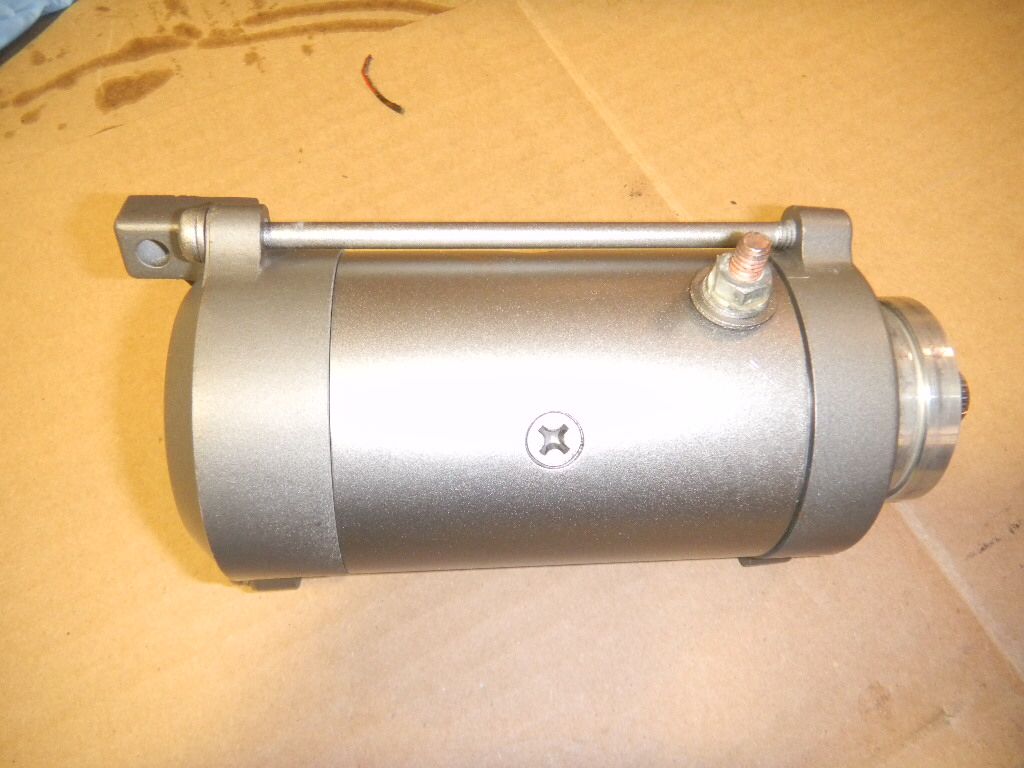

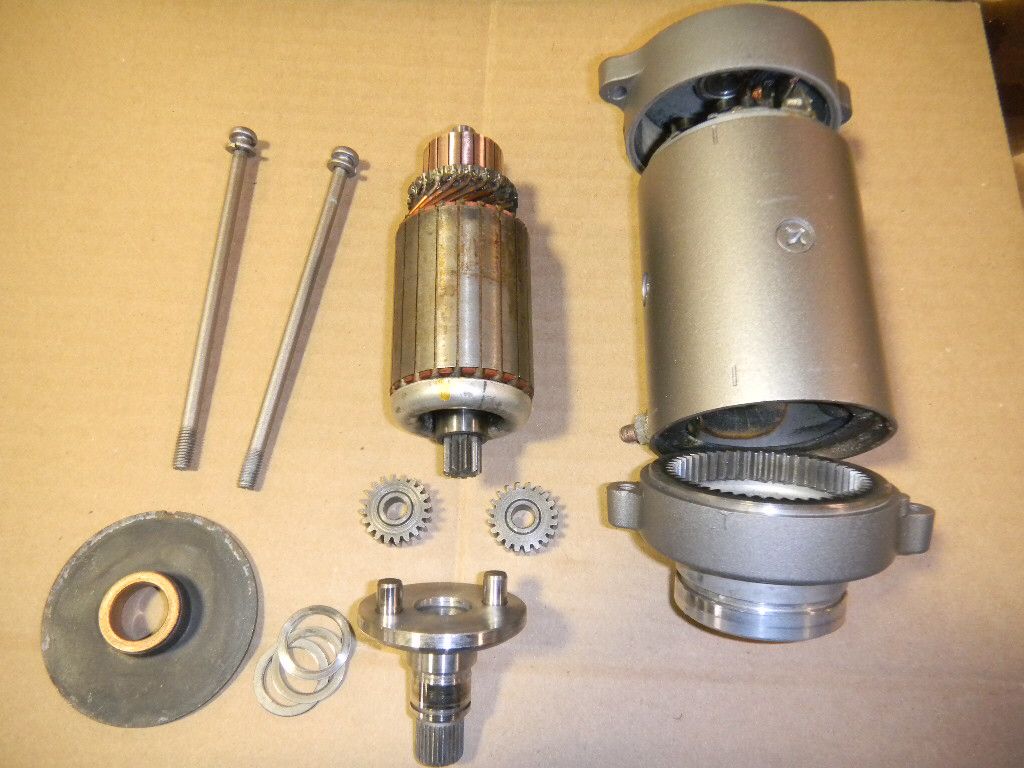

Starter stuff. Needed to be cleaned, painted & tested.
[Image: f18d2f5ac8c071bbc3ff4fe62fbdb817.jpg]

[Image: ff16617dd44d2f844ce1646efe5b906d.jpg]
Reply
#62
Engine updates

Won't be using the cable drive for the tachometer. Found a piece of scrap aluminum (scratched up, but will work). Machined it so it would fit in the bore of the tach housing.
More on this later.
[Image: 9fff31d1d150a1043e229a22f93a128b.jpg]

Pistons being installed
[Image: c34c726795513c0ab1fc1853bd88aa12.jpg]

Cylinder, timing chain, rollers & guide
[Image: 086098c76103b83a51d3b0086cebdb4c.jpg]

Sometimes I wished I had three hands.
Timing chain was to kept up during assembly. Trick is to devise a way that is easy to "unhook" to keep adding parts.
Used a bungee cord, connected to the garage door rail, then a piece of wire to go between the cord and the chain.
[Image: 0235e982411cae2474e467b9661b3c43.jpg]

Cylinder head & camshaft sprocket
[Image: 091d679cff43705ff95eaf22cc9c072c.jpg]

The tach drive "plug" in place. There's a seal in the bore, which explains why the piece looked strange. I'll replace the screw with an Allen head later.
[Image: 94349d93dad70a74bbb8e5ad478f79f9.jpg]

Pic of the camshaft (red stuff is assembly lube).
Valves adjusted, .002" Intake, .004" Exhaust
[Image: 5c3e39c65b416110b82cb1468f1f48e9.jpg]

This is as far as I'll go until it's in the frame. My brother & his son are coming over for some welding. I'll see if I can bribe them.
[Image: 2202ff30f49d593f17281681e25acf5b.jpg]
Reply
#63
Fantastic, Ray. I'm full of admiration.
Reply
#64
That bike is going to be awesome when you get it finished. Thanks for the updates.
Reply
#65
(04-21-2016, 10:48 PM)Cormanus_imp Wrote: Fantastic, Ray. I'm full of admiration.

+1 you have quite the mechanical ability. I'm so jealous.
Reply
#66
Excellent work! Very impressive Thumbs Up Thumbs Up
Reply
#67
Beautiful job! Eager to see the finished bike.Thumbs Up
Reply
#68
Razor, A friend uses one of those vibrating vats full of walnut shells to clean all his odd shaped small parts. Pretty inexpensive at Harbor Freight. That might be a good replacement for the buffing you hate.
Reply
#69
Thanks for your interest and comments.


(04-22-2016, 11:31 AM)Inhouse Bob_imp Wrote: Razor, A friend uses one of those vibrating vats full of walnut shells to clean all his odd shaped small parts. Pretty inexpensive at Harbor Freight. That might be a good replacement for the buffing you hate.

Don't have a vibratory tumbler, but I know someone who does. Might have to try it out. Funny thing about walnut shells; tried them a while back in the cabinet, and didn't get the results I was looking for. Maybe the tumbler is the way to go. Thanks for the tip Big Grin

------------------
Kinda neat what a bag of Fritos and drinks can do...
Brother helped me put the engine in the frame

Prep'd frame beforehand
[Image: 337cf8f22b26127f0b4f471ee01e17b7.jpg]

[Image: ffa62b980bb3131f632b99950c1498e3.jpg]

Installed the starter
[Image: 8ca33449009cf5a0cac6a5250c373ef1.jpg]

Much more to do. Approaching a couple of "milestones". Still need to fab a push rod for the clutch slave, and then there's the "body work & paint".

Thanks for your interest. I'll try to be prompt with updates.
Reply
#70
Holy Master Fab Craftsman Batman!! This whole build blows me away. More photos please!!!

Chip
Reply
