Where to tap speed sensor signal?

[Lord Popgun]

Hey! Bakelite was cool

[Cormanus]

Waddaya mean "Bakelite WAS cool?

[peterbaron]

YES, agree to both statements...remember those days very well...and these were solid built as well

[peterbaron]

REQUEST TWO perfect pictures of 2014 US model NONE ABS rear Wheel Speed Sensor....there are two types, pulse type generator or hall effect...not so sure which US model has....possible pic will tell, unless someone knows for 100%...need fast answer, going on short vacation, please

[PowerDubs_imp]

https://rover.ebay.com/rover/0/0/0?mpre=...2164075383


https://m.ebay.com/itm/2014-Honda-CB1100...3508174775




Sent from my iPhone using Tapatalk

[peterbaron]

https://rover.ebay.com/rover/0/0/0?mpre=...2164075383


https://m.ebay.com/itm/2014-Honda-CB1100...3508174775




Sent from my iPhone using Tapatalk

Is that the same one, you have mounted on your rear wheel (NO ABS) ??...can I also have a good pic of yours as is bolted (rear WSS, no need to take it apart, just good pic from close range), please . Thanks

[PowerDubs_imp]

As far as I know they are all the same.

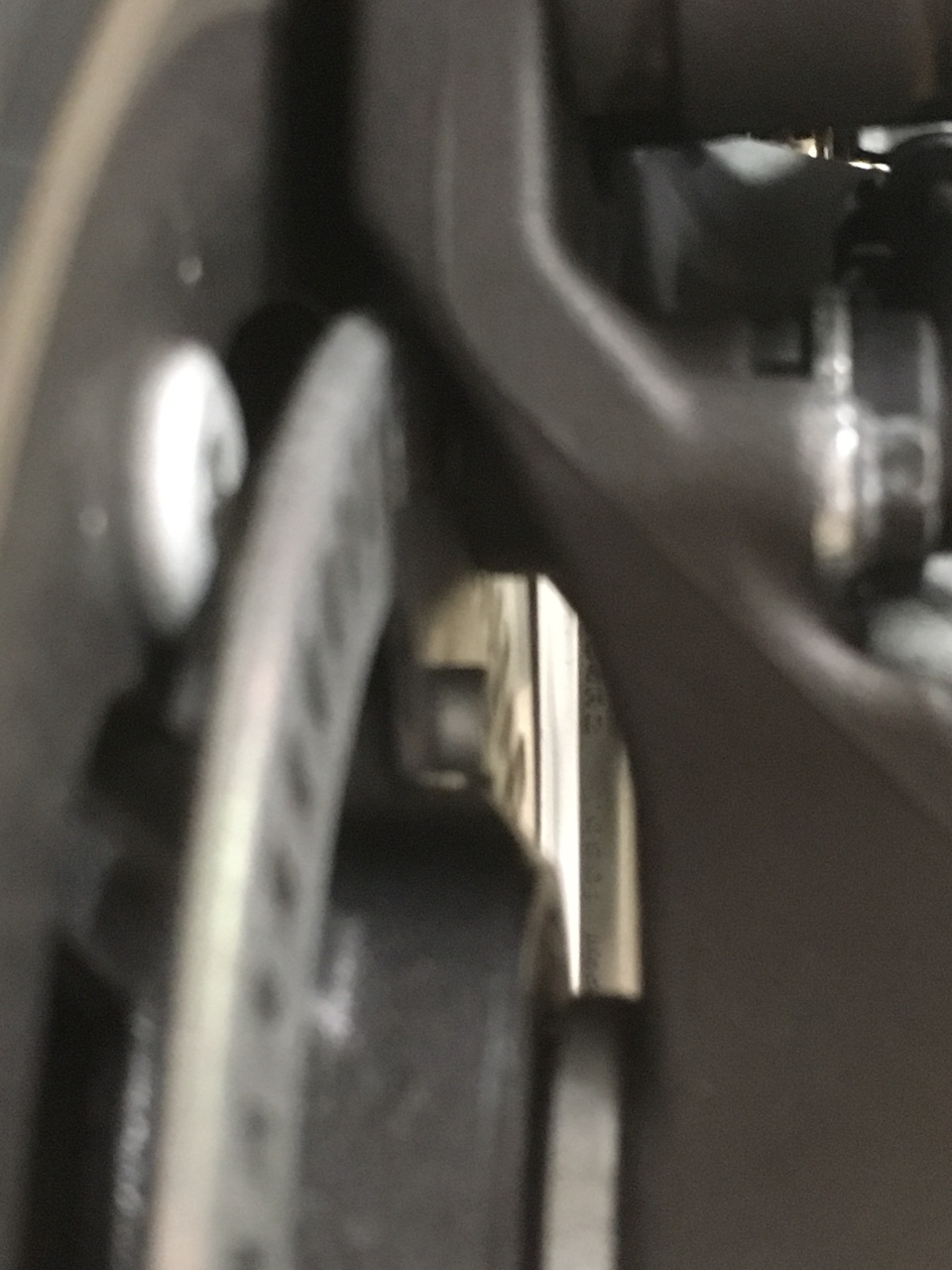

Here is mine on the bike-






Sent from my iPhone using Tapatalk

[peterbaron]

UPDATE ONLY,
Still working on this case, will try to submit more info before my vacation, starting Saturday Aug.18.
Some info already in my possession, still needs evaluation.

[chync_imp]

REQUEST TWO perfect pictures of 2014 US model NONE ABS rear Wheel Speed Sensor....there are two types, pulse type generator or hall effect...not so sure which US model has....possible pic will tell, unless someone knows for 100%...need fast answer, going on short vacation, please

The US model for 2014 non abs is different than European and/or previous year models. I discovered this when installing a speedohealer from healtech electronics which allows you to recalibrate the speedometer. The 2014 US model sends out a high/low signal which I guess is the pulse type. Healtech didn’t even realize the change or difference when I couldn’t get their product to work which was advertised to work on my year model. If the electronics being installed expect a different type of signal obviously it won’t work. I tapped my speed sensor wire at the connector plug behind the right side panel near the air intake.

Apologies if this info is redundant or has already been shared. This has to be one of the longest threads for such a specific issue.


Sent from my iPhone using Tapatalk

[Lord Popgun]

Peter, I couldn’t a scope probe on a pin easily so I ordered a cheap o-scope current probe. It hasn’t come yet.

And yes, I could have pierced a wire, but not happining.

Man, a good scope current probe is EXPENSIVE! I hope a cheap China one works for this application.
