Powder-Coated Front Fender, New Seat, Fender Eliminator, Etc.
Author Message
andyferd_imp Offline
First Service Completed


Posts: 20
Threads: 5
Likes Received: 0 in 0 posts
Likes Given: 0
Joined: May 2020
Powder-Coated Front Fender, New Seat, Fender Eliminator, Etc.
#1

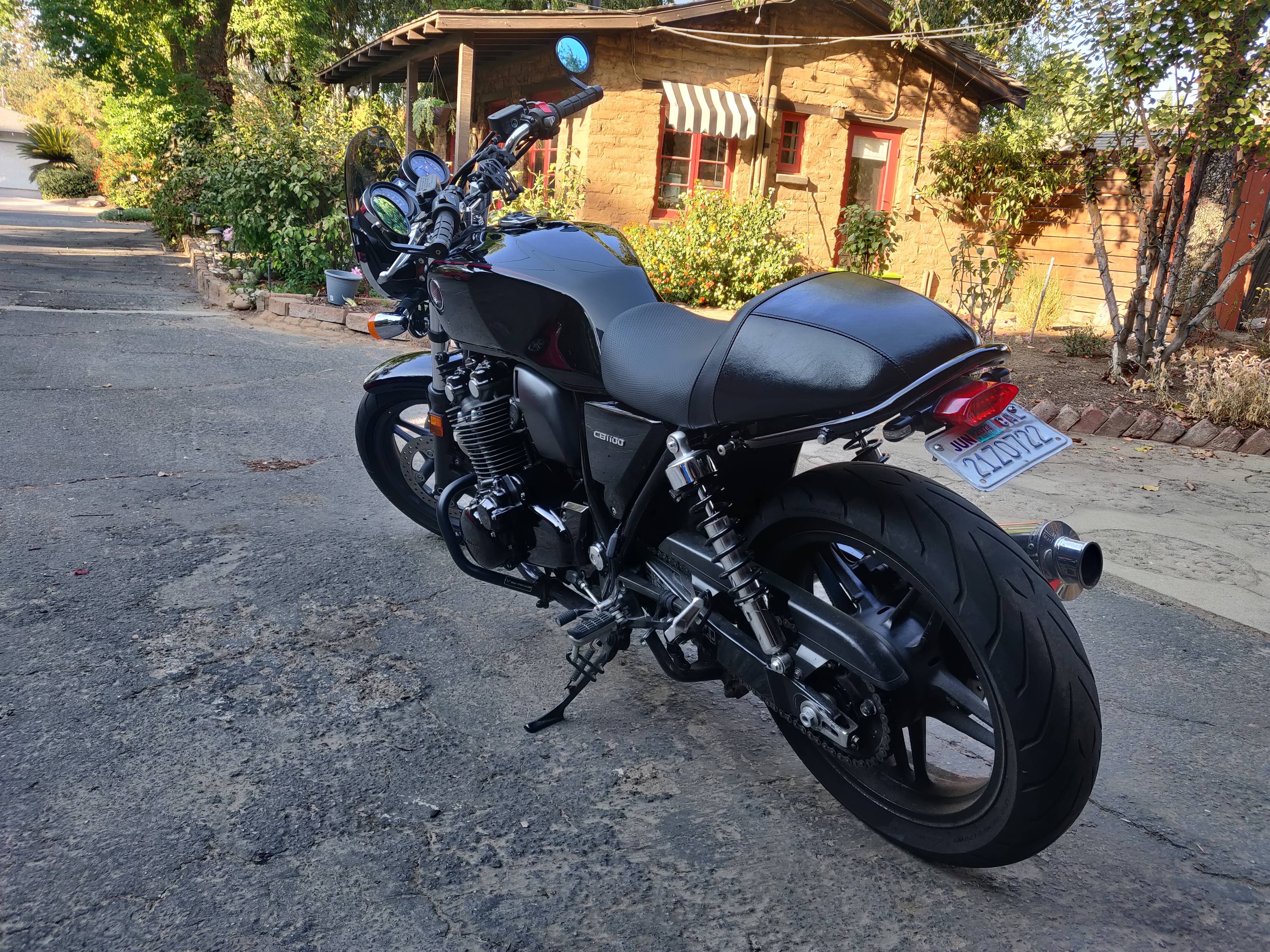

I made quite a few changes to my CB1100. I recently created my own rear fender out of some 18ga sheet metal, a tail light, and turn signals. It took a few tries since my previous fenders kept snagging on the rear wheel and getting destroyed after a big bump in the road. I ended up using 18ga and shortening it so it wouldn't flex while riding. I then bought an OEM rear grab bar from a 2017 and welded some tabs next to the original bolt holes so it could mount up. Finally I bought the Daytona seat to complete the look.

After that I got the front fender and headlight brackets powder-coated gloss black. I think everything turned out really well. Let me know what you think!

[Image: a64d208853a5210229129740fc182ab9.jpg]

[Image: 7ede44ef0e693cf2e1357bf5ed011a96.jpg]


10-04-2021, 07:58 AM
Find Reply
Nachodaddy Offline
Road Warrior

Litchfield Park, Arizona, USA
Posts: 1,360
Threads: 10
Likes Received: 123 in 71 posts
Likes Given: 316
Joined: Apr 2025
RE: Powder-Coated Front Fender, New Seat, Fender Eliminator, Etc.
#2

(10-04-2021, 07:58 AM)andyferd_imp Wrote: I made quite a few changes to my CB1100. I recently created my own rear fender out of some 18ga sheet metal, a tail light, and turn signals. It took a few tries since my previous fenders kept snagging on the rear wheel and getting destroyed after a big bump in the road. I ended up using 18ga and shortening it so it wouldn't flex while riding. I then bought an OEM rear grab bar from a 2017 and welded some tabs next to the original bolt holes so it could mount up. Finally I bought the Daytona seat to complete the look.

After that I got the front fender and headlight brackets powder-coated gloss black. I think everything turned out really well. Let me know what you think!

[Image: a64d208853a5210229129740fc182ab9.jpg]

[Image: 7ede44ef0e693cf2e1357bf5ed011a96.jpg]

Beautiful! Nice work.


10-04-2021, 08:38 AM
Find Reply
Gordo_imp Offline
Running Like a Top


Posts: 106
Threads: 4
Likes Received: 0 in 0 posts
Likes Given: 0
Joined: Oct 2017
Powder-Coated Front Fender, New Seat, Fender Eliminator, Etc.
#3

Dang....that looks cool man! Nice job!!

Titus 2:13
2013 HONDA CB1100


10-04-2021, 09:23 AM
Find Reply
PowerDubs_imp Offline
Road Warrior


Posts: 2,635
Threads: 125
Likes Received: 1 in 1 posts
Likes Given: 0
Joined: Jun 2016
RE: Powder-Coated Front Fender, New Seat, Fender Eliminator, Etc.
#4

That tail looks great and compliments the tank lines really nicely.


10-04-2021, 09:41 AM
Find Reply
tod.branko_imp Offline
Been There


Posts: 563
Threads: 19
Likes Received: 0 in 0 posts
Likes Given: 0
Joined: Aug 2020
Powder-Coated Front Fender, New Seat, Fender Eliminator, Etc.
#5

Nice work andy, I hope it turns out well for you, I had the the same "bump and break" issue with a fabricated tail tidy so ended up chopping the stock fender in the end. I like your tail light/signal setup, would you mind sharing a link for it?

'14 CB1100 STD 5 speed


10-04-2021, 11:10 AM
Find Reply
andyferd_imp Offline
First Service Completed


Posts: 20
Threads: 5
Likes Received: 0 in 0 posts
Likes Given: 0
Joined: May 2020
RE: Powder-Coated Front Fender, New Seat, Fender Eliminator, Etc.
#6

(10-04-2021, 11:10 AM)tod.branko_imp Wrote: Nice work andy, I hope it turns out well for you, I had the the same "bump and break" issue with a fabricated tail tidy so ended up chopping the stock fender in the end. I like your tail light/signal setup, would you mind sharing a link for it?

'14 CB1100 STD 5 speed

Hi Tod! Yeah I hope this version holds up long term. The tail light is:

https://www.amazon.com/dp/B08NX53CPM?psc...ct_details

and the turn signals are:

https://www.revzilla.com/motorcycle/puig...id=1654008


10-04-2021, 02:56 PM
Find Reply
E11even_Hunnit Offline
Been There

California
Posts: 322
Threads: 5
Likes Received: 17 in 10 posts
Likes Given: 26
Joined: Nov 2019
RE: Powder-Coated Front Fender, New Seat, Fender Eliminator, Etc.
#7

This kinda reminds me of my brief, pre-covid, zip-tie days, before I had the time to fab up some proper brackets(angled way high IMO)

[Image: bf5b47fd73d9101b49d97e68964b449e.jpg]

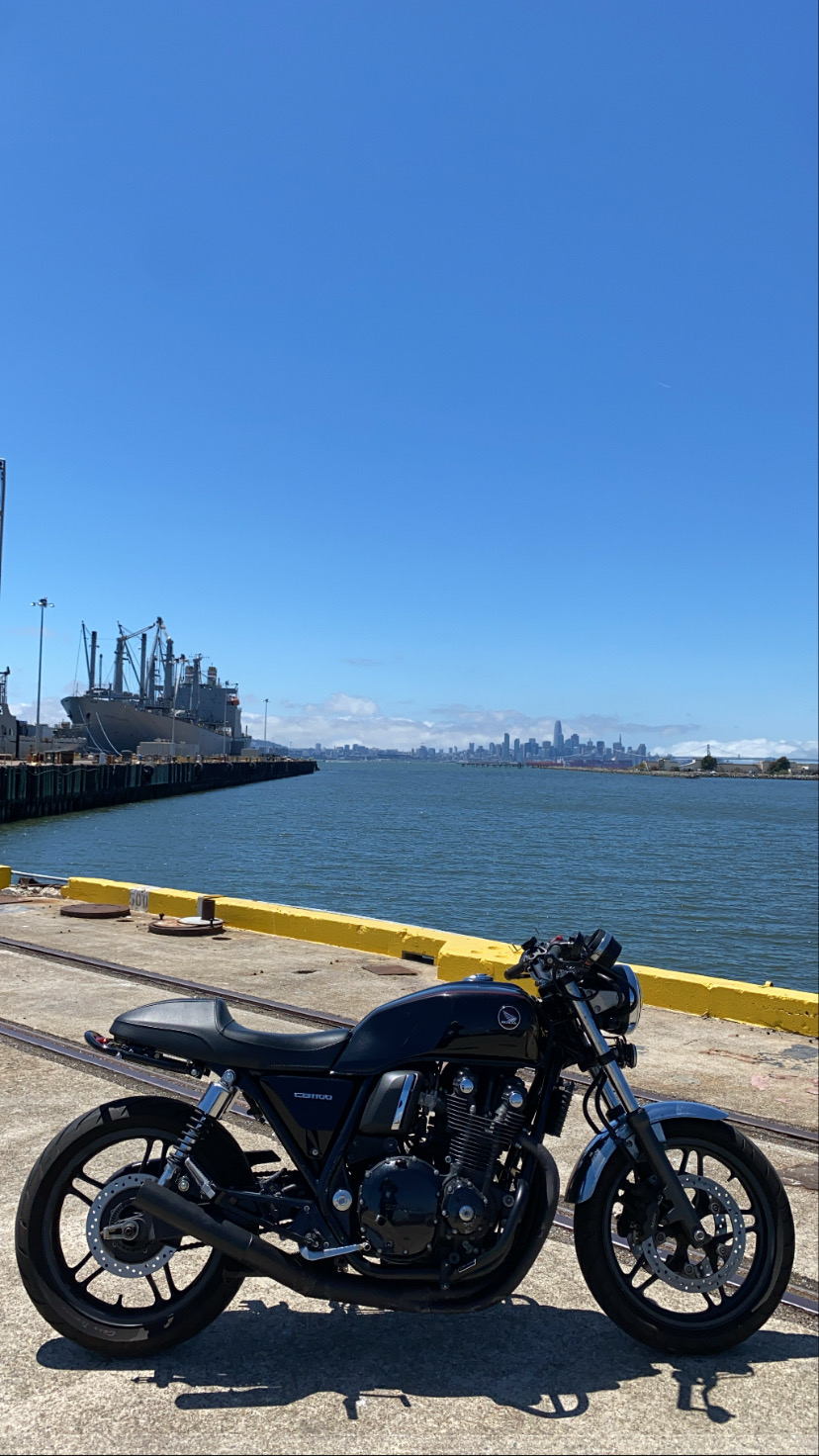

I later decided to carefully measure the gap between the rail and the frame so that it was uniform and consistent with the overall line angles on the rest of the bike when looked from afar

[Image: 40a5eb1d6289be184ad59ea84e08bf72.jpg]

I think your FEK/plate mount look fantastic though, lights look much better than the LED tail included on my Ryujin kit.

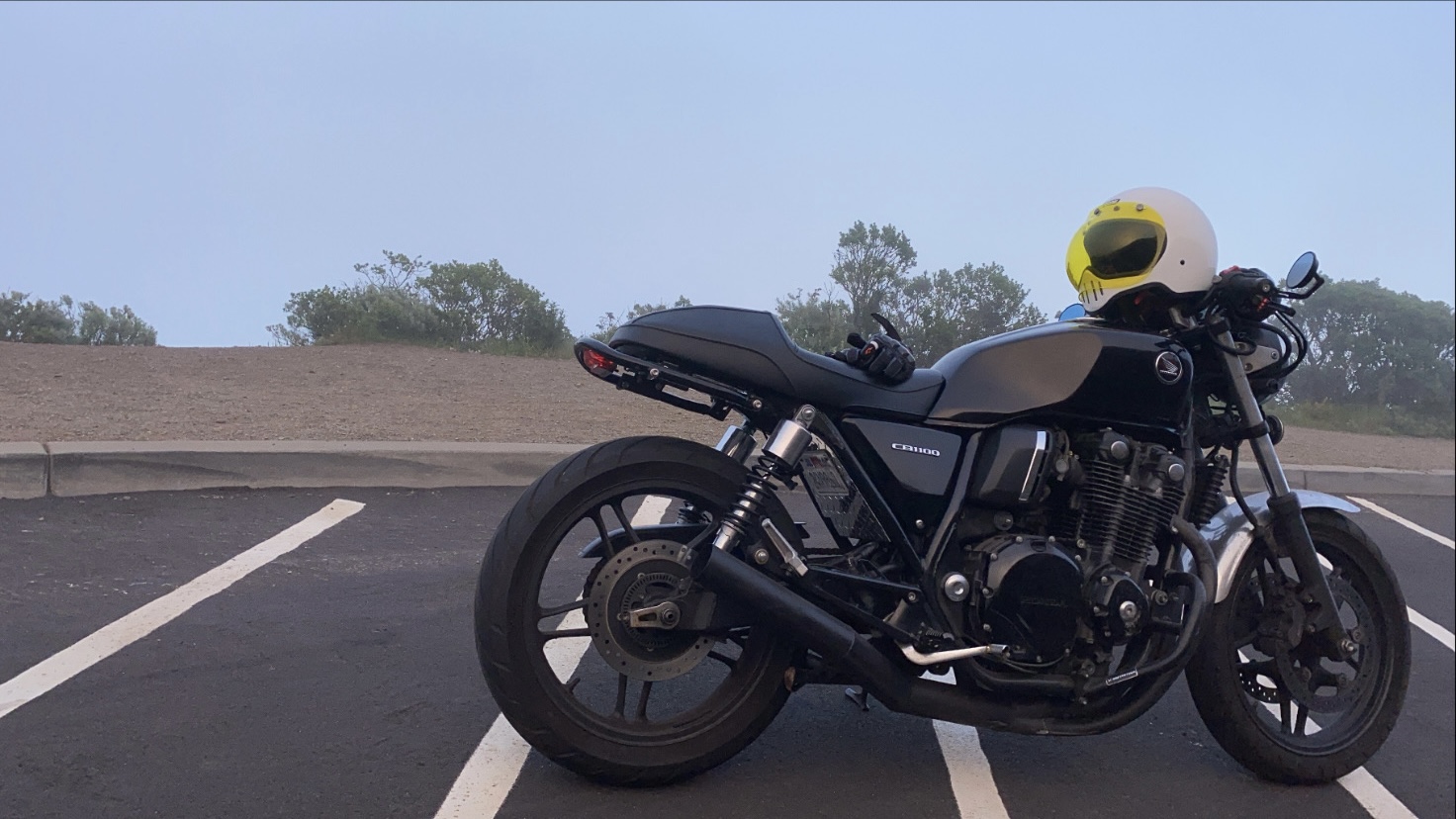

As far as plate location, I just decided to move on to something a little...less conventional ROFL

[Image: 5fc153c80cfb37c9a6e66642b8b02c2b.jpg]

Cool to see I'm no longer the only Cafe'd Standard in NorCal. I think there's another AZ guy on here whose bike looks identical to yours, Daytona seat and all Thumbs Up


10-04-2021, 06:17 PM
Find Reply
ender_ong_imp Offline
First Service Completed


Posts: 10
Threads: 1
Likes Received: 0 in 0 posts
Likes Given: 0
Joined: Jun 2021
RE: Powder-Coated Front Fender, New Seat, Fender Eliminator, Etc.
#8

Bike's looking great, Andy. Shoutout to the CB1100 cafe racers in California


10-08-2021, 06:23 AM
Find Reply
